Products > Barcode Scanner print

Brand

Datalogic

Model

QuickScan L QD2300

Description

    Wider scan angle for longer code reading. User replaceable scan window. Multi-interface solution for the most popular interfaces. Supports GS1 DataBar™ linear codes
Printable version

    Specification

    Decoding Capability
    • 1D / Linear Codes
      • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
      • Postal Codes
        • China Post
        Electrical
        • Current
          • Operating (Typical)
            • 100 mA @ 5 VDC
            • Standby/Idle (Typical)
              • < 35 mA
            • Input Voltage
              • 5 VDC +/- 10%
              Environmental
              • Ambient Light
                • 64,575 lux
                • Drop Resistance
                  • Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
                  • ESD Protection (Air Discharge)
                    • 20 kV
                    • Humidity (Non-Condensing)
                      • 5 - 95%
                      • Particulate and Water Sealing
                        • IP42
                        • Temperature
                          • Operating
                            • 0 to 50 °C / 32 to 122 °F
                            • Storage/Transport
                              • -40 to 70 °C / -40 to 158 °F
                            Interfaces
                            • Keyboard Wedge
                              • RS-232
                                • USB
                                  • Multiple Interfaces Available
                                  Physical Characteristics

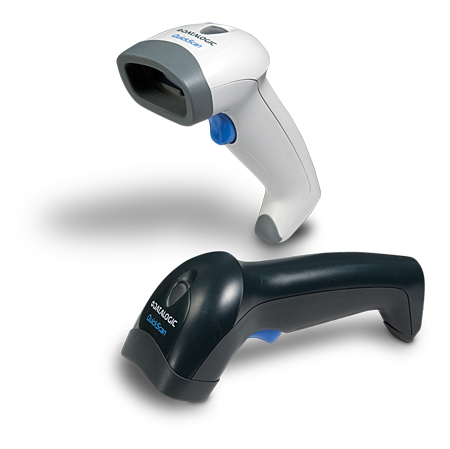

                                  • Colors Available
                                    • Black
                                      • White
                                      • Dimensions
                                        • 17.0 x 7.1 x 6.6 cm / 6.7 x 2.8 x 2.6 in
                                        • Weight
                                          • 127.6 g / 4.5 oz
                                          Reading Performance
                                          • Light Source
                                            • 650 nm VLD
                                            • Print Contrast Ratio (Minimum)
                                              • 30%
                                              • Read Rate (Maximum)
                                                • 100 reads/sec.
                                                • Reading Angle
                                                  • Pitch
                                                    • +/- 65°
                                                    • Roll (Tilt)
                                                      • +/- 30°
                                                      • Skew (Yaw)
                                                        • +/- 60°
                                                      • Reading Indicators
                                                        • Beeper (Adjustable Tone)
                                                          • Good Read LED
                                                          • Resolution (Maximum)
                                                            • 0.130 mm / 5 mils
                                                            Reading Ranges - Typical Depth of Field
                                                            • Minimum distance determined by symbol length and scan angle.
                                                              • Printing resolution, contrast, and ambient light dependent.
                                                                • 5 mils
                                                                  • 2.0 to 13.0 cm / 0.8 to 5.1 in
                                                                • 7.5 mils
                                                                  • 1.0 to 20.0 cm / 0.4 to 8.0 in
                                                                • 10 mils
                                                                  • 0.5 to 22.0 cm / 0.2 to 8.6 in
                                                                • 13 mils
                                                                  • 0.5 to 24.5 cm / 0.2 to 9.8 in
                                                                • 20 mils
                                                                  • 3.0 to 27.0 cm / 1.2 to 10.5 in
                                                                Safety & Regulatory
                                                                • Agency Approvals
                                                                  • The product meets necessary safety and regulatory approvals for its intended use.
                                                                    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
                                                                    • Environmental Compliance
                                                                      • Complies to China RoHS
                                                                        • Complies to EU RoHS
                                                                        • Laser Classification
                                                                          • Caution Laser Radiation - Do not stare into beam
                                                                            • EN 60825-1 Class 2
                                                                              • IEC 60825-1 Class 2
