Brand

Labau

Model

LD240

Description

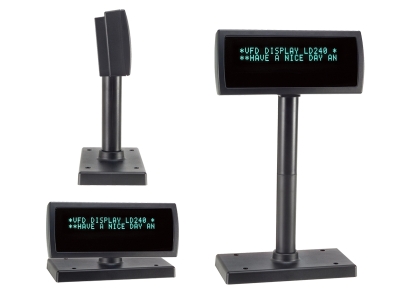

2x20 Standard Durable Customer Display Printable version

Specification

2x20 Standard Durable Customer Display

Power supply from 5~12V, prevent any mindless use of improper power input!

LD240 has 2 kinds of interface, USB and RS232(Serial). Both these 2 kinds of interface, could support 5~12V power supply. By this even there is a user who has no experience of POS operation, will not have a change to damage the VFd by improper power input.

20 columns x 2 lines of dot matrix support high brightness and wide viewing angle

The average brightness of LCM customer display is 200cd/m2. But the brightness of LD240 is 1000cd/m2.

It is 5 times bright than LCD customer display.

By this your customer can see the product information under strong light or outdoor sunlight. Also with a amazing wide viewing angle.

LD240 Specification

General	Display Method	Vacuum Fluorescent Display (Blue-green)
	Number of characters	40 (20 columns x 2 lines)
	Brightness	500~1000 cd/m2
	Character font	5 x 7 dot matrix
	Character type	95 Alphanumeric, 32 International Characters
	Character size	5.5 (H) x 9.2 (W) mm
	Dot Size (X x Y)	0.86 x 1.2 mm
	Download characters	9 characters
	Panel Dimension	220 (W) x 50 (D) x 87 (H) mm
	Pole Dimension	Per support length: 130 (L) x 34.5 (Dia) mm
	Base Dimension	217 (W) x 106 (D) x 33 (H) mm
	Viewing Angle	Max. 90 degrees
	Horizontal Rotation	Max. 355 degrees
	Weight	Approx. 980 grams
Commands Mode		UlTIMATE, LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
Language Support		US English, Int'l English, Bosnia, Croatian, Czech, Danish, Dutch, Estonian, Faroese, Finnish, Flemish, French, Fr Canadian, German, Greek, Hebrew, Hungarian, Icelandic, Indonesian, Irish, Italian, Katakana, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovene, Slovak, Spanish, Swedish¡K
Interface		RS-232 (serial) / USB
Connection	Baud rate	Direct connection 9600 or 19,200 bps
Reliability	MTBF	30,000 hours
Power	Consumption	5~12 VDC
Safety	EMC standards Safety standards	FCC, CE
