Shuttle XH61
Description
-
Shuttle Mini-PCs squeeze an impressive number of intelligent, energy-saving technologies into their modern, compact design. Created with the power to help you work faster, some models are also HD-compatible.
Specification
| FORM FACTOR | Mini-ITX MB 3.5 L chassis |
|---|---|
| PROCESSOR | Support Intel Sandy Bridge / Ivy Bridge 65W CPU |
| CHIPSET | Intel H61 |
| MEMORY | 2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB) Dual Channel DDR3 1333 Mhz |
| VGA | DVI + HDMI dual display |
| AUDIO | Realtek ALC662 5.1 channel High Definition Audio |
| ETHERNET | Realtek 8111E X2 IEEE 802.3u 100Base-T specification revision 1.0 100Mb/s and 1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | (3) 3.0Gb/s bandwidth SATA II |
| ONBOARD CONNECTORS | (2) SATA connectors (2) 1x5 pin USB 2.0 header (1) ATX main power connector (1) ATX 12V power connector (2) set 4pin fan connectors |
| FRONT PANEL | (2) USB 2.0 ports (1) Microphone-In (1) Earphone-Out Power-On button Power LED HDD LED |

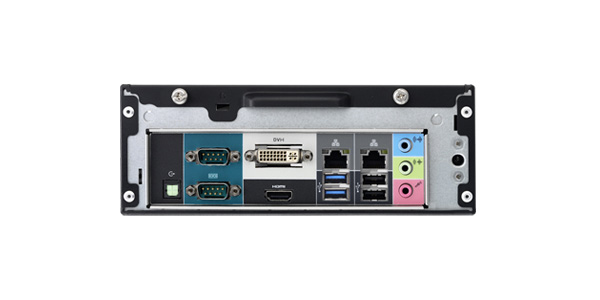

| BACK PANEL | (2) RJ45 Gigabit LAN port (1) DVI-I VGA port (1) HDMI (2) USB 2.0 ports (2) USB 3.0 ports (1) S/PDIF out (1) RS232 (1) RS232/RS422/RS485 (1) Line in port (1) Line out port (1) MIC in port (1) Clear CMOS button (1) Kensington lock (2) Wireless Antenna fixture |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay (1) Slim ODD bay. User can install either 1 Slim ODD or 2nd 2.5" HDD/SSD (1) PCI-E x1 slot |
| DIMENSIONS | 240(L) x 200(W) x 72(H) mm |
| POWER | 90W Power Adapter Input:100- 240V AC Output: 19V 4.47A DC |
| ACCESSORIES | " Optional " PS01 (Stand accessory) " Optional " PV02 (VESA mount accessory) |
| EXPANSION SLOT | (1) Full size Mini-PCIE socket (m-SATA support) (1) Half size Mini-PCIE socket |
