Products
Brand
Pioneer POS
Model
S-Line with EPSON printer
Description
-

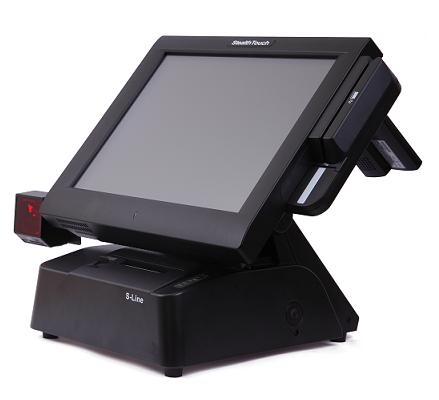

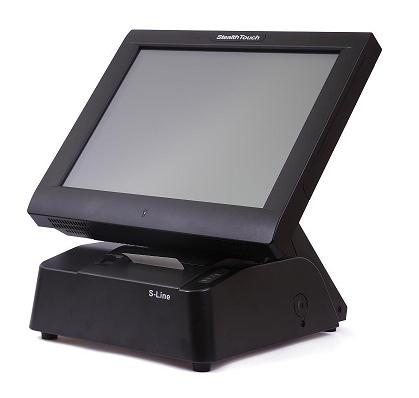

The S-Line redefines the all-in-one design by integrating an EPSON® thermal receipt printer into a touchcomputer.
Specification
15" S-Line with an integrated EPSON® printer| Display | 15" LCD, Active matrix TFT, 1024x768 |
| Touchscreen | Resistive, InfraRed, Capacitive |
| Spill-proof | Yes (front panel) |
| Processor | Intel Atom 1.6GHz, Dual Core 1.9GHz, Core 2 Duo 2.53GHz |
| Memory | 1GB, 2GB, 3GB, 4GB (only on Dual Core/Core 2 Duo models) |
| Storage | 80GB SATA Hard Drive, 4GB Compact Flash |
| Operating System | XP Prof, WePOS, POS Ready, XP embedded, Windows 7, Linux |
| Network/Ethernet |
Intel 10/100/1000 BaseT. Option: Wifi RF802.11 a/g/n Supports vPro (iAMT 4.0) on Dual Core/Core 2 Duo models |
| Serial Ports | 4 |
| Parallel Port | Optional |
| USB 2.0 | 6 |
| Powered USB | +12V, +24V |
| 2nd VGA | 1 (supports dual view) |
| Printer (built-in, field-replacable) |
EPSON® 3" Thermal with autocut |
| Cash Drawer Port | Optional (Epson emulation, +24V) |
| Dimensions (W x H x D) | 14.5 (16.25 with MSR) x 15.0 x 13.0inches |
| Weight | 26 lbs |
| Operating Temperature | 0° C to 40° C, 20% to 80% Humidity |
| Power Supply | 150W, AC 100-240V |
| Integrated Add-ons |
Mag. Stripe Reader Biometric Reader (Digital Persona U.R.U) 2x20 Rear Display 2nd LCD Display (8" or 10") |
