Shuttle DS61
Description
-
Shuttle Mini-PCs squeeze an impressive number of intelligent, energy-saving technologies into their modern, compact design. Created with the power to help you work faster, some models are also HD-compatible.
Specification
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR | Support Intel Sandy Bridge / Ivy Bridge 65W CPU |
| CHIPSET | Intel H61 |
| MEMORY | 2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB) Dual Channel DDR3 1333 Mhz |
| VGA | DVI-I + HDMI dual display |
| AUDIO | Realtek ALC662 channel High Definition Audio |
| ETHERNET | Realtek 8111E X2 IEEE 802.3u 100Base-T specification revision 1.0 100Mb/s and 1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | 3.0Gb/s bandwidth SATA II |
| ONBOARD CONNECTORS | (2) SATA connectors (1) SATA power connector (1) LVDS connector (1) LPC header (1) 4pin fan connector (1) 3pin fan connector (1) Clear CMOS header |
| FRONT PANEL | (4) USB 2.0 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED (1) SD Card reader |

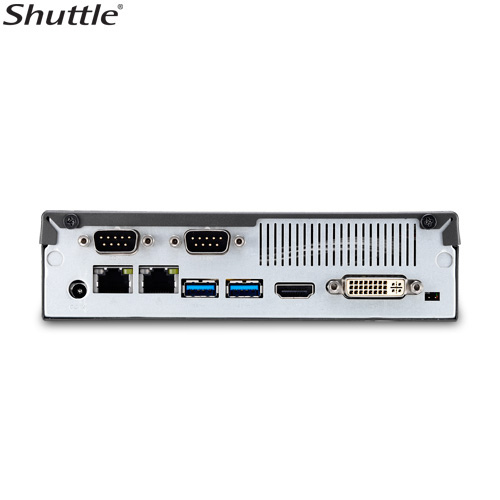

| BACK PANEL | (2) RJ45 Gigabit LAN port (1) DVI-I port (1) HDMI port (2) USB 3.0 ports (1) RS232 (1) RS232/RS422/RS485 (1) External power on header (1) DC in (1) Kensington lock (2) Wireless Antenna fixture |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER | 90W Power Adapter Input:100- 240V AC Output: 19V 4.47A DC |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver (XP32 / 64 bit and Win7 32/ 64 bit) VESA mount VESA mount quick installation guide 1* Power cord 1* SATA cable Screws |
| EXPANSION SLOT | (1) Full size Mini-PCIE socket (m-SATA support) |
